The Milan hardware module.
Drop VITRA into your product and carry on doing what you do best.
The Milan hardware module.
Drop VITRA into your product and carry on doing what you do best.
The demand for reliable and future-proofed audio networking is growing rapidly with the adoption of Milan. Manufacturers face a challenge in adopting Milan while keeping focused on the core functionality of their product. This is where Sienda offers a significant time and cost saving through a drop-in Milan hardware module.

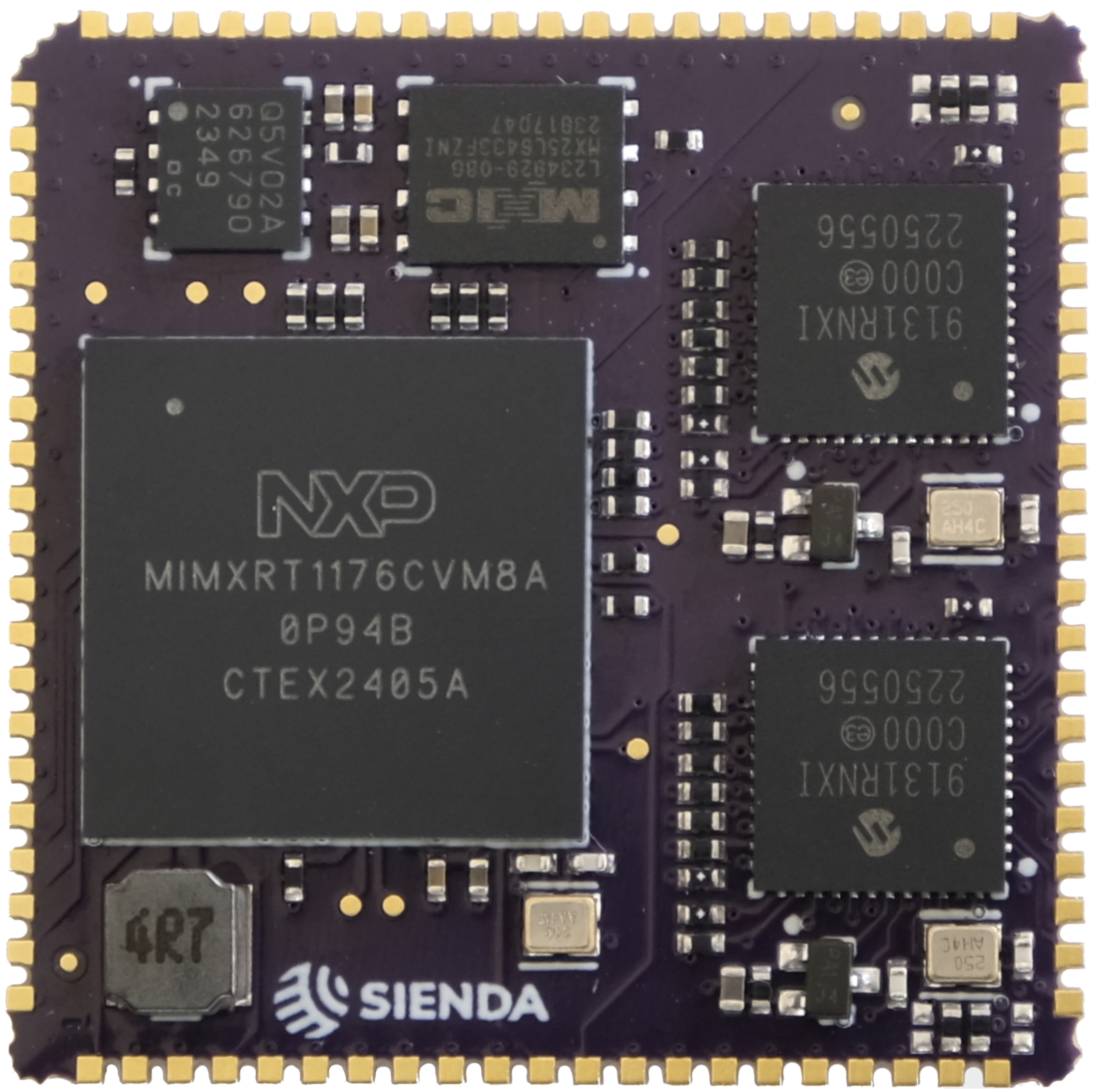

VITRA is a tiny and powerful ready-to-go system-on-module that enables manufacturers to implement full Milan functionality quickly and easily. It implements Sienda’s TSN solution, preferred by prestigious names in the pro-audio industry.
Milan network connectivity via 2 Gigabit Ethernet interfaces
32 Input + 32 Output digital audio channels via I2S/TDM
8 x 8-Channel Milan streams
Available as system-on-module or ‘Soft-SoM’ to implement directly into your design
Highly configurable peripherals including I2C, SPI, USB, UART, word clock, and more
Download the full product overview
Here are some specifics. Please download the product overview PDF for all technical information.
Interface Details
Interface
Count
Description
Ethernet
2
• 1Gbps
I2S/TDM
11
• Up to 7 Tx audio data pins
• Up to 7 Rx audio data pins
• 11 Total audio data pins
• Shared FSCLK, BCLK, SCLK pins (Additional to 11 data pins)
• 16 / 20 / 24 / 32-bit
• Left justified / Right justified
• 2 Channel I2S
• 1 / 2 / 4 / 8 /16 Channel TDM
SPI
1
• ADC/DAC/CODEC control
• 4 x Chip-select pins
I2C
1
• ADC/DAC/CODEC control
PPS / Word clock input
1
PPS Output
1
Word clock output
1
Ethernet LED
4
• 2 per-port
• Configurable functionality
GPIO
20
• Configurable I/O functionality
• Example 1: Endpoint clock sync status LED
• Example 2: Identify device button
• Example 3: Audio output mute button
• Shared with other interface pins
Media clock output
1
• System media clock (System PLL output)
USB
1
• USB Audio UAC2
Optional External PLL
1
• Optional interface for supporting an external clock recovery PLL
• Dedicated I2C SDA & SCL
• Reference clock output
• PLL input
Optional External Switch
2
• Interface for external Marvell switch ICs
• Adds multi-port bridging capability
• MDIO bus
• 25MHz clock
• See relevant technical note for full switch implementation details
This display is too small to format the information properly.
Please download the PDF:
The consistent availability of components that power your products is critical. While we can’t control the availability of each individual component, Sienda are dedicated to providing solutions that ensure uninterrupted delivery to your customers.
Here’s our commitment to availability for your peace of mind:
Direct Integration Option
We offer the option to seamlessly integrate our designs directly onto your PCB, eliminating the need to purchase a physical module from us.
Built-In Alternatives
Our hardware and software designs are developed with alternative components in mind, ensuring flexibility and adaptability to changing supply conditions. Our core software stack runs on almost any platform.
Full Design Transparency
If for any reason Sienda is unable to supply modules, we will provide complete design files for our hardware, enabling you to manufacture them independently.
VITRA is in currently in development.
Pricing information will be released in Q3 2025.
Please get in touch to register your interest.

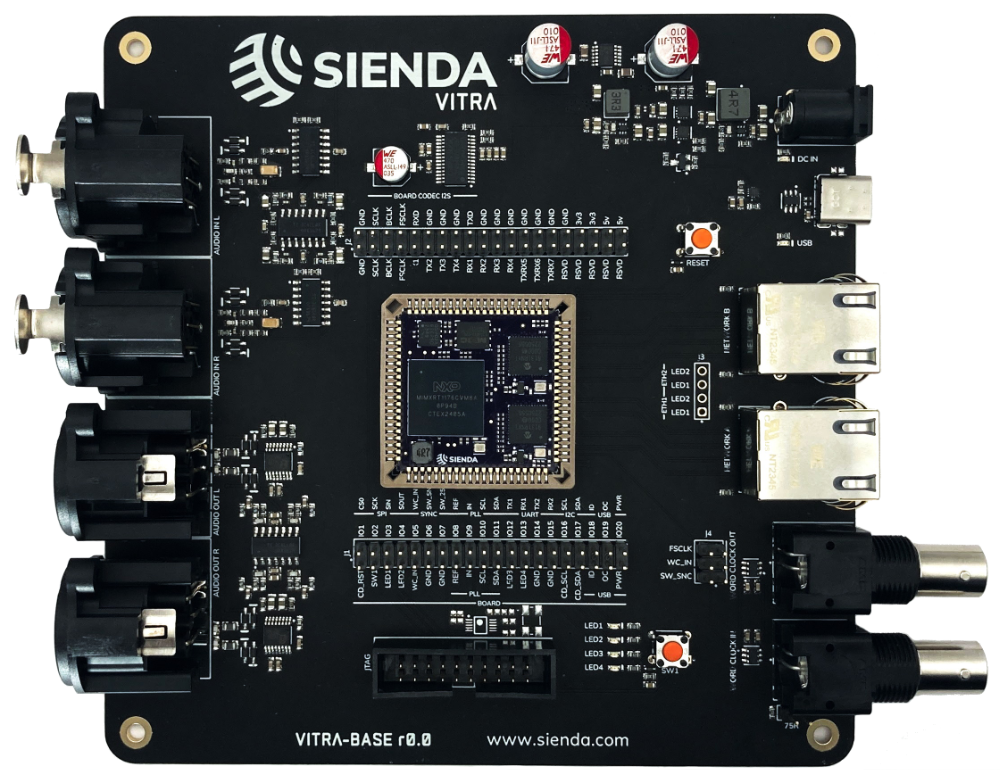

VITRA Base
The VITRA-BASE is an evaluation platform and development tool to kickstart your Milan product.
2 x Gigabit Ethernet interfaces
2 x Line-level analogue audio inputs on XLR connectors
2 x Line-level analogue audio output on XLR connectors
CS4272 Audio codec
Word-clock output and input on BNC connectors
Pin-headers for all i2s/TDM pins
Pin-headers for user i2c and SPI interfaces
Pin-headers for all GPIO and other Module signals
4 x general-purpose LEDs which can be jumpered to GPIOs
A general-purpose button which can be jumpered to GPIOs
VITRA is in currently in development.
Please get in touch for pricing information or to register your interest.
